DESCRIPTION

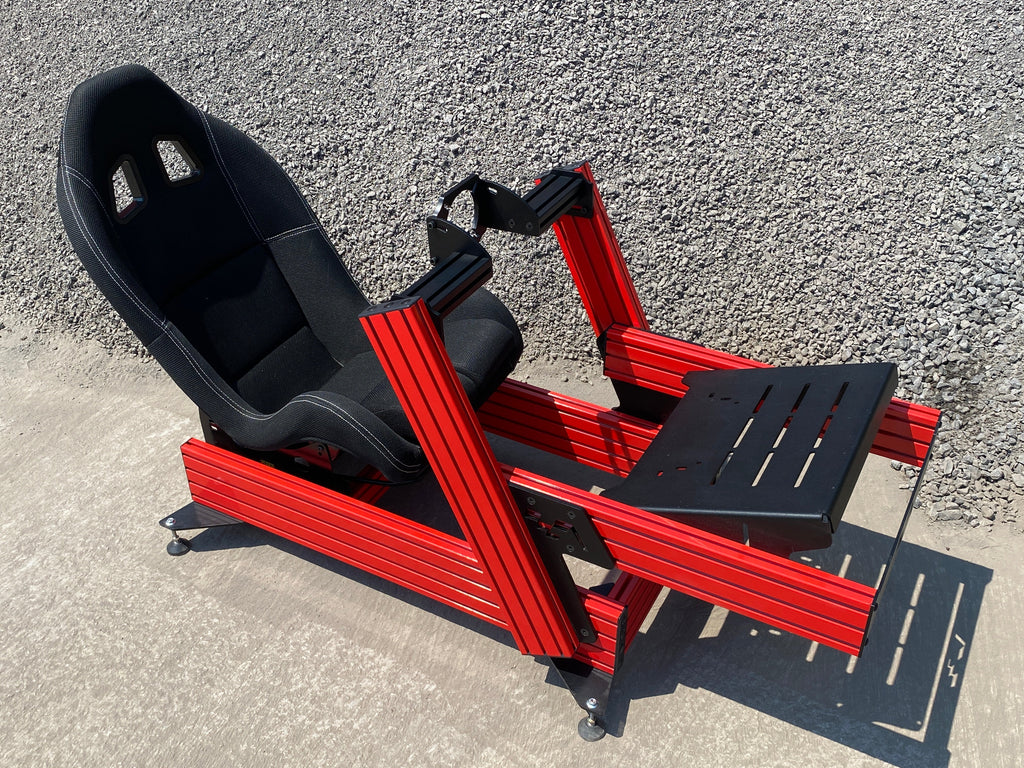

- The ASR-F is the culmination of a year-long quest to achieve the ultimate Formula-style racing position with an aluminum profile build.
- This is, without the shadow of a doubt, the most robust Formula-style SimRacing chassis ever created.
- Thanks to its unique design, top grade aluminum alloy, 6 inch base, 4.5 inch pedal plate support extension and wheel base support column, you can rest assured that this chassis will bring out the true potential of the most powerful SimRacing peripherals available today.
- Our design philosophy remains the same, zero flex and no weakpoints whatsoever in this build.
- The sheer size of the aluminum pieces used in creating this chassis allows for a wide variety of adjustment opportunities, allowing SimRacers of all builds to create their perfectly personalized Formula-style position.
- The ASR-F is available in two premium powder coat colors : Racing Red & Infinite Black
- Made from top-grade alloy Aluminum sourced in the United States of America
- Produced and packaged in Canada with the utmost care and attention.
- Chassis size and format is adequate for most builds and heights (Up to 6'6" or 1.98m).
- Four Wheel Deck options available
- Standard Wheel Deck (Entry level and mid-range products from manufacturers such as Thrustmaster, Fanatec and Logitech)
- Podium DD Side Mount (Fanatec Podium DD1/DD2 Series)
- CSL DD Pro Side Mount (Fanatec CSL DD & GT DD Pro)
- Front Mount (MiGE Motor-type wheel bases, such as Simucube products, Simagic Alpha / Alpha Mini, VRS products and other front mounting products)
- Two Pedal Tray options available
- Steel Pedal Plate
- Aluminum Pedal Deck & Heel Rest
SPECIFICATIONS
- Base length : 40"
- Base width : 22"
- Chassis length (including the pedal tray support base) : 56"
- Chassis width (including the wheel base column) : 25"
- Full product width (including support feet) : 29"
- Height at wheel base column tip : 32"
- Height at pedal tray (when pedal plate is flat) : 18"
- Height at pedal tray (when pedal plate is fully angled) : 21.5"
WHAT'S INCLUDED
- Box 1 (Aluminum) 51" x 6" x 4"
- 1 x Aluminum profile 40" x 6" x 1.5"
- 1 x Aluminum profile 19" x 6" x 1.5"
- 1 x Aluminum profile 26" x 4.5" x 1.5"
- Front plate with Advanced SimRacing crest
- Box 2 (Aluminum) 51" x 6" x 4"
- 1 x Aluminum profile 40" x 6" x 1.5"
- 2 x Aluminum profile 19" x 3" x 1.5"
- 1 x Aluminum profile 26" x 4.5" x 1.5"
- Box 3 (Aluminum) 30" x 6" x 3"
- 2 x Aluminum profile 28" x 4.5" x 1.5"
- Box 4 (Hardware) 16" x 12" x 3"
- 1 x Left Side Z-Shaped Steel Plate
- 1 x Right Side Z-Shaped Steel Plate
- 26 x M8 Flathead Screws (20mm)
- 26 x M8 T-Nuts
- 12 x Corner Gusset and Plastic Caps
- 42 x M8 Socket Cap Screws (16mm)
- 42 x M8 T-Nuts
- 34 x M8 Washers
- 4 x M8 Button Head Screws (16mm) for the Front Plate
- Seat mounting hardware
- 4 x M8 Screws (12mm)
- 4 x M8 T-Nuts
- Endcaps
- 4 x 6" Endcaps
- 6 x 4.5" Endcaps
- 36 x Pushpins
- 4 x Steel Triangle Plates
- 4 x Adjustable Feet
- 4 x M8 Locking Nuts
- Box 5 (Wheel Deck selection) 13" x 10" x 3"
- Depending on your selection : Standard Wheel Deck or Podium DD Side Mount or Podium DD Side Mount and Front Mount or CSL DD Pro Side Mount
- 8 x M8 Flathead Screws (16mm)
- 8 x M8 T-Nuts
- 2 x Aluminum profile 7.5" x 3" x 1.5"
- Box 6 (Pedal Support) Depending on your selection
- Steel Pedal Plate - 19" x 16" x 4"
- 1 x 3/16" Steel Pedal Plate
COMPATIBILITY
- Standard Wheel Deck
- Logitech products
- Thrustmaster products
- Fanatec entry-level and mid-range products (including the CSL DD and Podium DD products)
- Simagic M10
- AccuForce Pro V2 Steering System
- Moza R9, R12, R16, R21
- MOZA R5 (Only back two bolts)
- Fanatec (Podium DD & CSL DD Side Mount)
- Fanatec Podium DD1 & DD2
- Fanatec CSL DD
- Fanatec GT DD Pro
- Fanatec ClubSport DD and DD+
- Asetek (Front Mount)
- All Asetek Wheel base
- Simucube & MiGE Motor (Front Mount)
- Simucube 2 Sport, Pro & Ultimate
- VRS Direct Force Pro
- AccuForce Pro V2 Steering System
- Simagic Alpha / Alpha Mini
- Other MiGE Motor-type wheel bases
- Steel Pedal Plate
- Heusinkveld
- Sim Pedals Sprint
- Sim Pedals Ultimate
- Sim Pedals Ultimate+
- Thrustmaster products
- Fanatec products (Except CSR Pedals)
- Logitech products
- Simtrecs ProPedal GT
- Asetek SimSports Invicta Sim Racing Pedals
- Simagic P1000 & P2000
- And much more (please inquire for specific pedal sets)
-
Aluminum Pedal Deck & Heel Rest
- Heusinkveld
- Sim Pedals Sprint
- Sim Pedals Ultimate
- Sim Pedals Ultimate+
- MECA Cup1
- Simtrecs ProPedal GT
- Sim Coaches P1-2/3 Pro Hydraulic Pedals
- Simforge Engineering Mark-1
- RaceWerks S1 PRO
- Simworks PRO GT V3.1 LC Pedal Set
- HPP JBV 2/3 Pedal System (JBV Angled Mounting Tabs required)
- And many more (please inquire directly with us for specific pedal sets)
- NOT COMPATIBLE with the Logitech G29 pedal set or the Fanatec ClubSport Pedals V3
ASSEMBLY GUIDE
You'll find the ASR-F Assembly Guide right here!
More assembly guides available on our dedicated page.
RACING SEAT RECOMMENDATIONS
- Advanced Formula Seat
- Sparco GP Gaming
SHIPPING AND LEAD TIME
- FREE SHIPPING to all of the Continental U.S. and Canada (excluding Yukon, Northwest Territories & Nunavut).
- IMPORT DUTIES COVERED for U.S.-based customers.
- We ship from Montreal in Canada.
- Once the items have shipped, transit time typically takes between 2 and 4 business days
- Please note that all large items, such as our SimRacing Chassis, Monitor Stands and Racing Seats, might not arrive on the same day as other parts of your order. Because of their weight and size, these boxes get sorted differently at our shipping partner's logistics hub.
WARRANTY
Advanced SimRacing-brand products come with a free and complete lifetime replacement warranty that covers any and all hardware durability issue and damage stemming from proper assembly and residential usage of the product. All hardware parts, aluminum beams and steel plates or gussets are covered under this warranty. Please contact info@advancedsimracing.com for information or claims in regards to this lifetime warranty.
Warranty coverage limitations:
- Any condition resulting from other than ordinary residential wear or any use for which the product was not intended, such as use in rental, contract trade or commercial use
- Any condition resulting from incorrect or inadequate manipulation, maintenance or care of the product
- Damage resulting from misuse, abuse, negligence, accidents or shipping damage
- Any esthetic damage such as scratches and chipping that might occur during normal residential manipulation, assembly and operation of the product
- Normal and expected wear and tear
- Damages incurred during transportation by our shipping partners or by the customers upon reception of the product
- Dissatisfaction due to buyer's remorse.
