DESCRIPTION

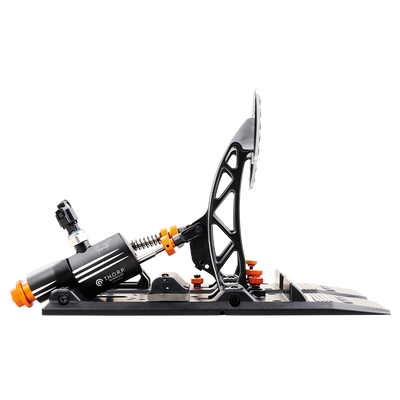

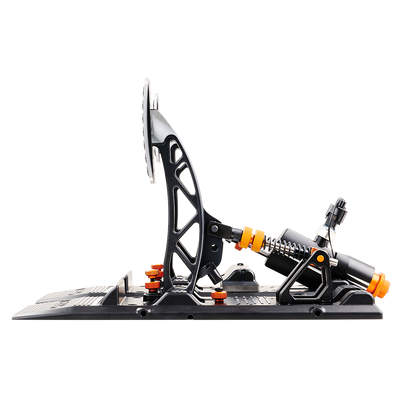

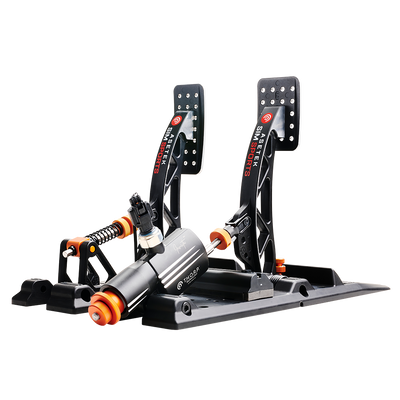

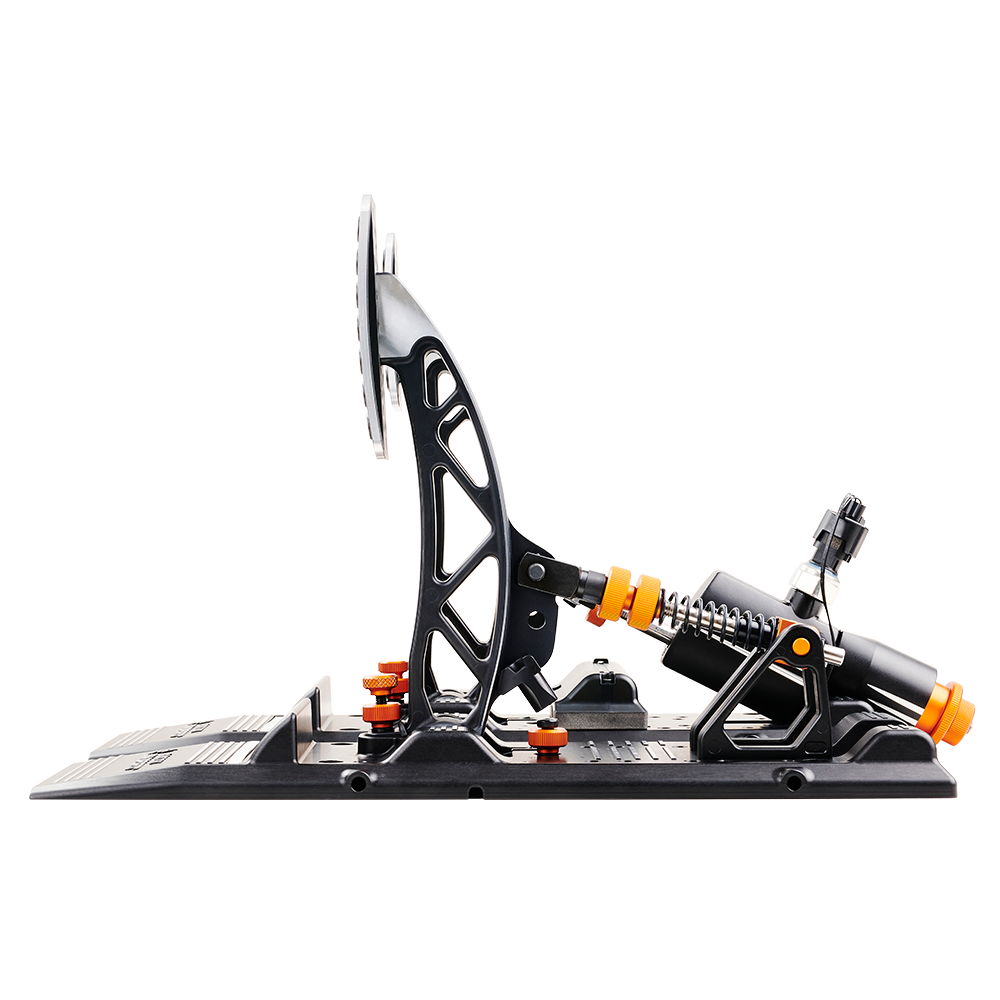

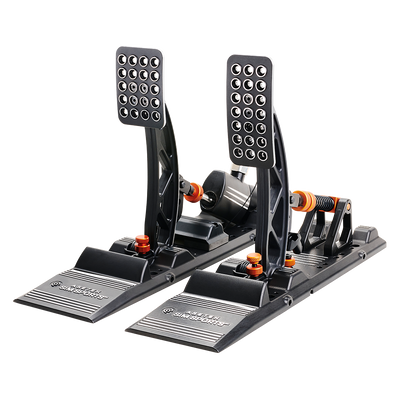

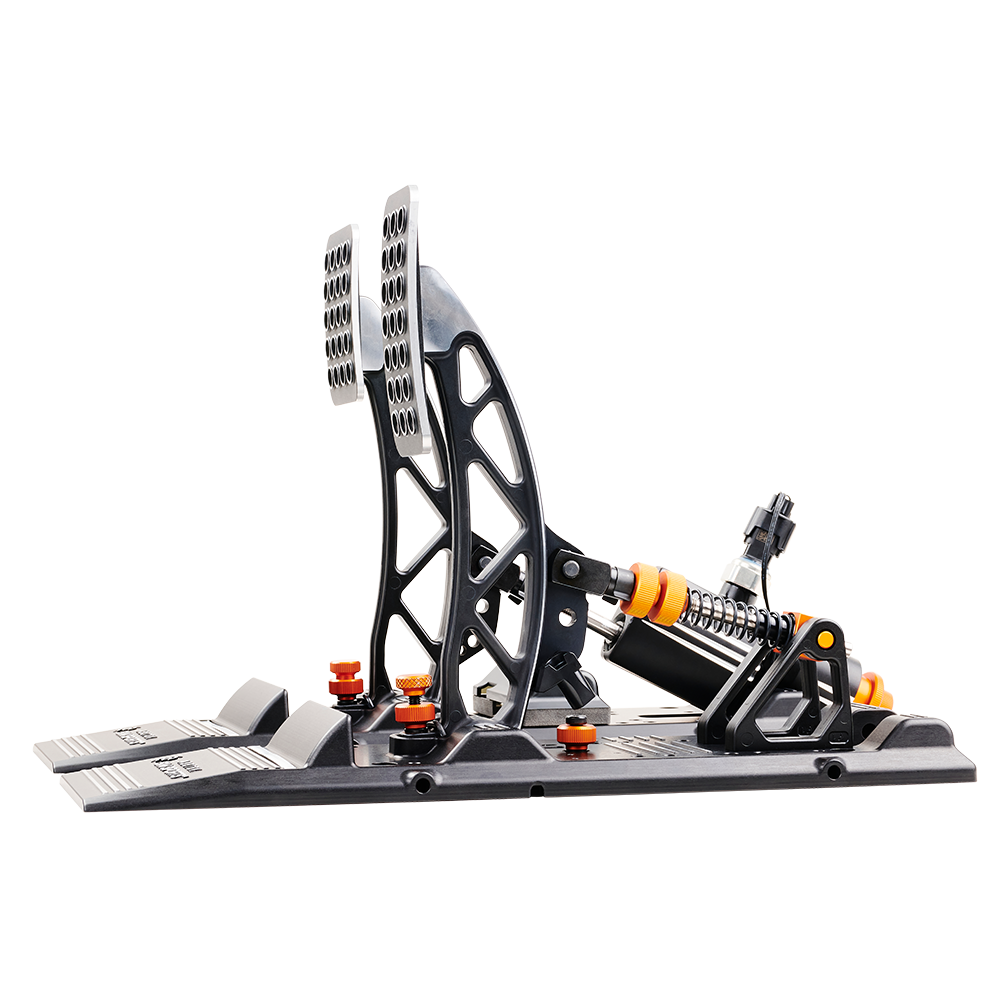

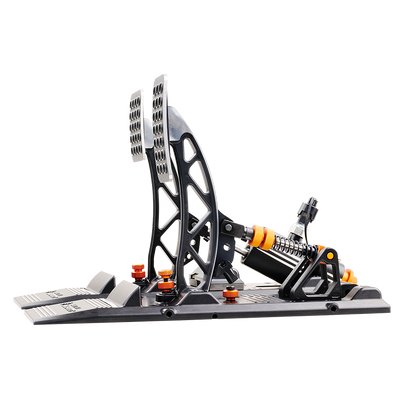

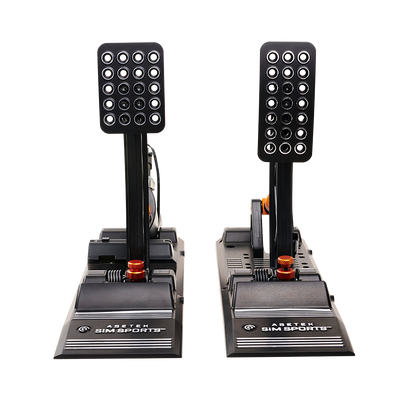

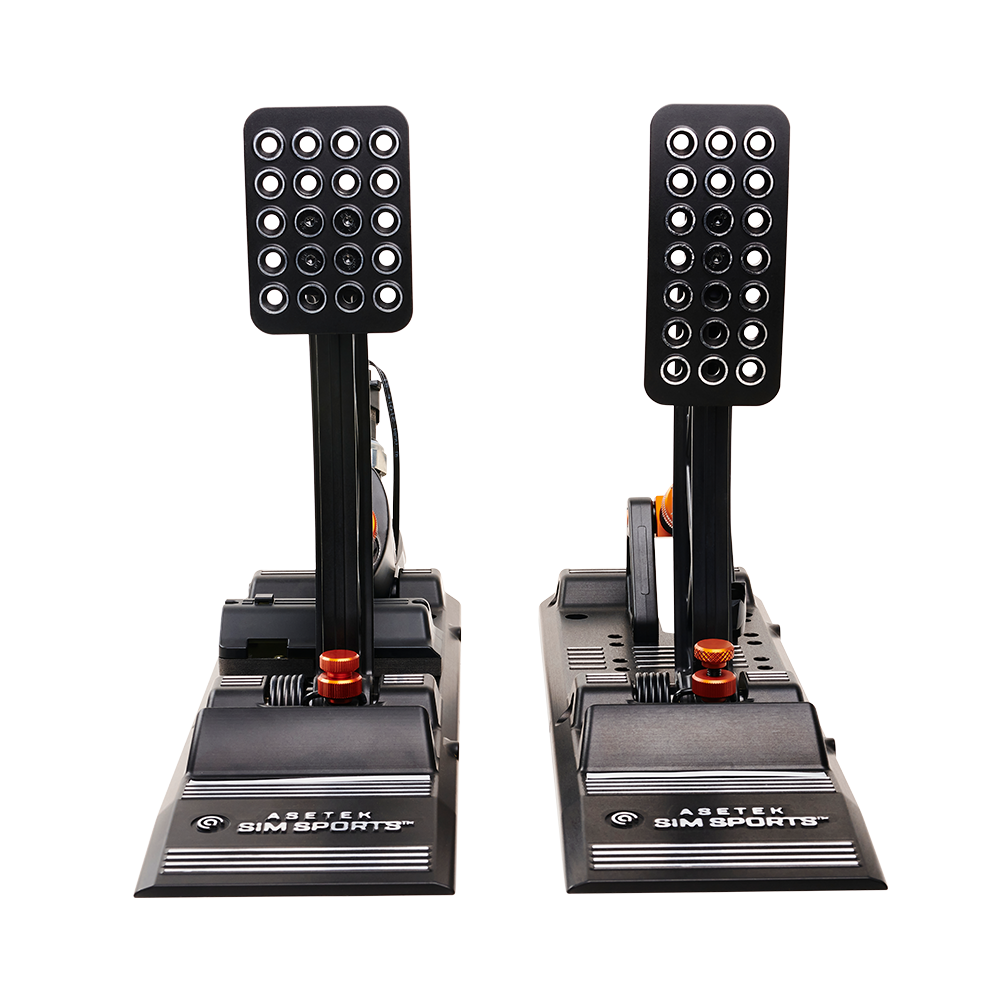

- The Invicta S Series Brake and Throttle are the Invicta Sim Racing Brake and Throttle, as you know them – just separated.
- This version of the Invicta Sim Racing Pedals allows you to decide and adjust the distance between the throttle and brake. This feature gives you the opportunity to design your sim racing setup to suit your exact preferences.
- Asetek SimSports Invicta Pedals are the pinnacle of sim racing gear. The hydraulic sim racing pedals are designed with real race car feel, durability, and ease of use in mind. They are plug’n’play capable out of the box and by using the Asetek SimSports RaceHub software, you will experience a plethora of advanced features for experienced sim racers. However, unlike to most sim racing products on the market, you do not require expert skills to unlock the full potential.

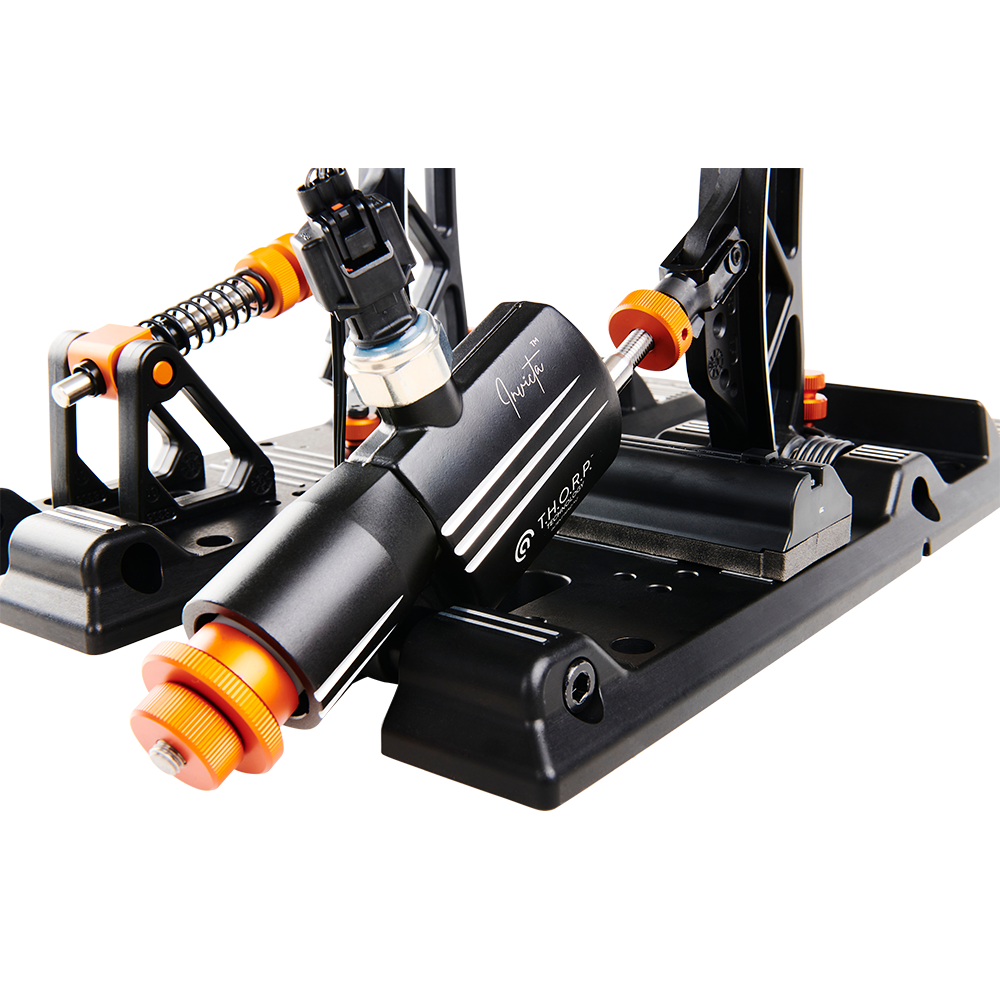

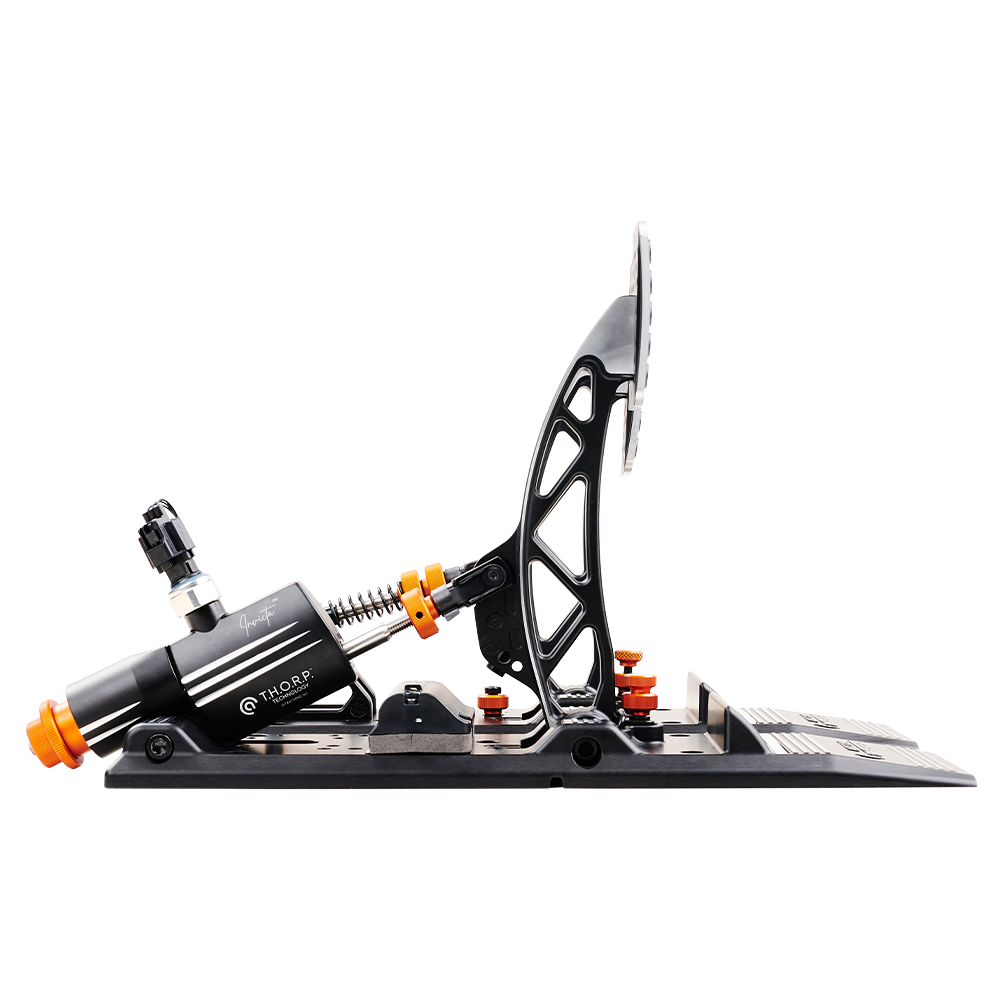

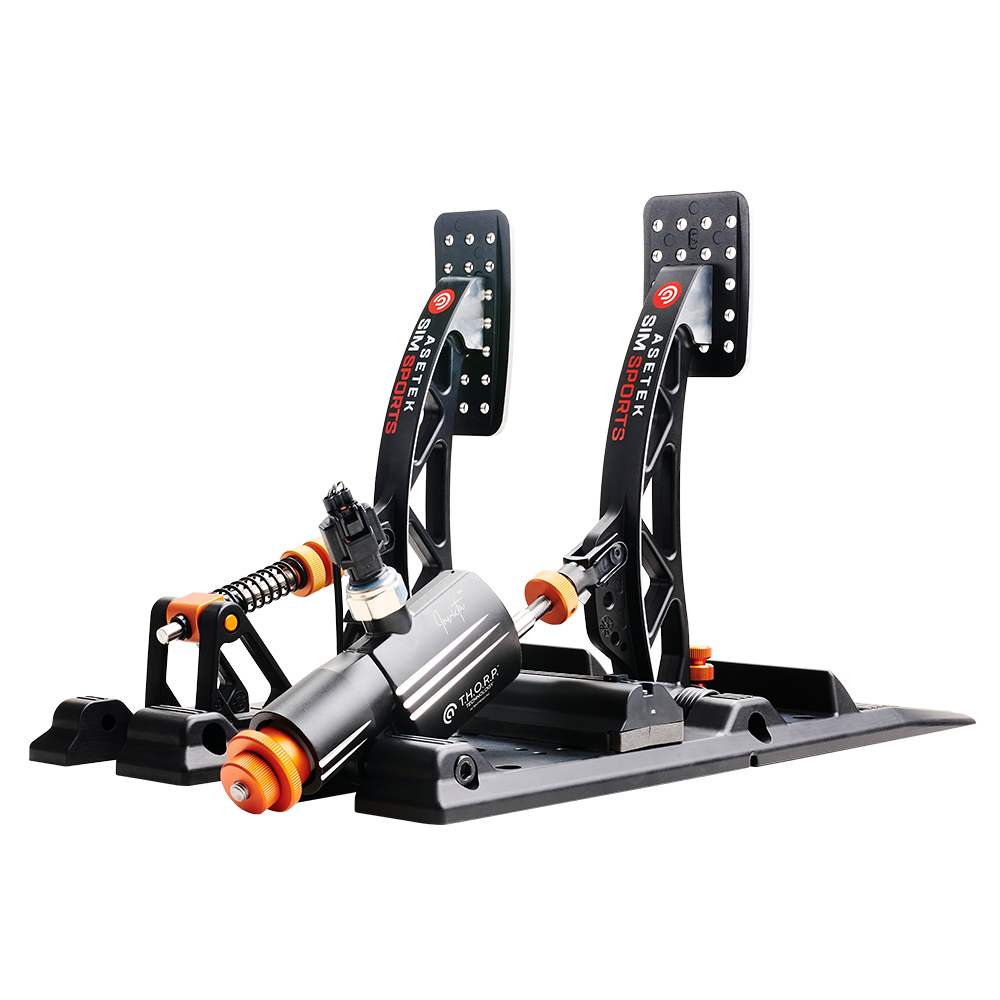

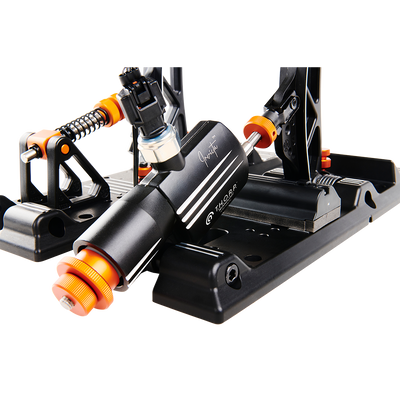

- T.H.O.R.P. (Twin Hydraulic Opposing Rapid Pistons) is Asetek SimSports’ hydraulic brake cylinder which gives the racer, the ultimate experience of driving a real racecar. The entire set of pedals are, in every sense, “Made in Denmark” – Designed, engineered, and assembled in Denmark. The brake cylinder features an automotive grade pressure sensor, which makes it the closest you will come to a realistic brake experience in sim racing.
- Want to “just” shave off some tenths of your best lap times? The Invicta Sim Racing Pedals will help you do exactly that. Under appreciated by many, half of the steering in a race car is provided by the pedal input. Want to completely immerse yourself in a racing experience using a racing simulator that will provide everything but the smell of burning rubber? Invicta will be a crucial piece of your racing simulator as well.
- As well as being inspired by racing industry standards, Invicta Sim Racing Pedals have been thoroughly tested by racers and sim racers alike. The pedals are engineered and designed with that feedback in mind. The T.H.O.R.P. hydraulic brake cylinder is designed and rigorously tested with 100 bars of pressure in the hydraulic system and up to 200 kilogram of mechanical pedal pressure.
- If you have been looking for the ultimate race car brake pedal feel, look no further! The brake pedal on the Invicta pedals is hard. Rock hard and it will stay that way – unlike many other sim racing pedals on the market, where the hardness and feel will degrade over time. It is not a coincidence a race driver wants a brake pedal as hard as pushing a concrete wall…
- When applying brake pressure late you want to be able to use muscle memory to replicate that trail brake feeling going into the corner. By using muscle memory your brain is wired to be able to brake at the same spot over and over on the track. Conversely if you use a soft pedal, you will have to rely on foot or pedal position, disallowing your brain the ability to replicate with the same accuracy and you will – guaranteed – lose important lap time. Did you ever consider on a racetrack with 10 corners, gaining or losing 1/10 of a second on the brake, means a second on your lap time?
- The design is engineered with user-experience in-mind, where all adjustable elements are colored to get you started quickly, and to ensure intuitive and mostly tool-less usage. The sim pedals are highly adjustable to help you channel your inner race car driver, by changing the travel and hardness settings to your exact preference.
DESIGN AND FEATURES VIDEO
TECHNICAL SPECIFICATIONS
- General Tech
- Exquisite, radical, and minimalistic industrial Danish design
- Adjustable pedal stops
- Adjustable travel settings
- All black anodized aluminum pedal base, pedal arms, and pedal plates, with CNC machined contrast cut surfaces.
- Pedal base with integrated heel rest and RGB LED that can be adjusted, dimmed, or turned completely off in the RaceHub software
- Adjustable pedal plates that can be moved along the x- and y-axis
- Calibrations made in RaceHub will automatically be saved in our EPROM (Erasable Programmable Read-Only Memory). This results in calibration (pressures, deadzones and more) will be remain saved for every simulator/game (You do need to set 0 and 100% value in the game).
- Only one USB connection to the PC from the pedal base regardless of 2 or 3 pedal utilization
- Each pedal can be calibrated through the intuitive and easy to use RaceHub software
- Pedal upper and lower dead zones can be set through the RaceHub software
- All adjustable mechanical features are by default colored Orange
- Inhouse developed electronics with 16-bit resolution and automotive-grade pressure sensor
- Optional to purchase smooth sock-friendly pedal plates (coming later) Easy to add Clutch pedal to the Throttle & Brake combo
- Made in Denmark
- Sustainable manufacturing with 100% on-site re-use of waste material
- Designed and tested to 1,000,000 activations, which far exceeds any race car specification

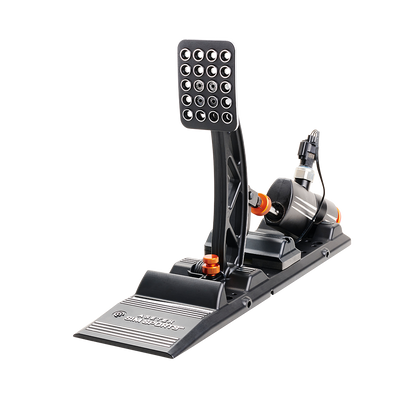

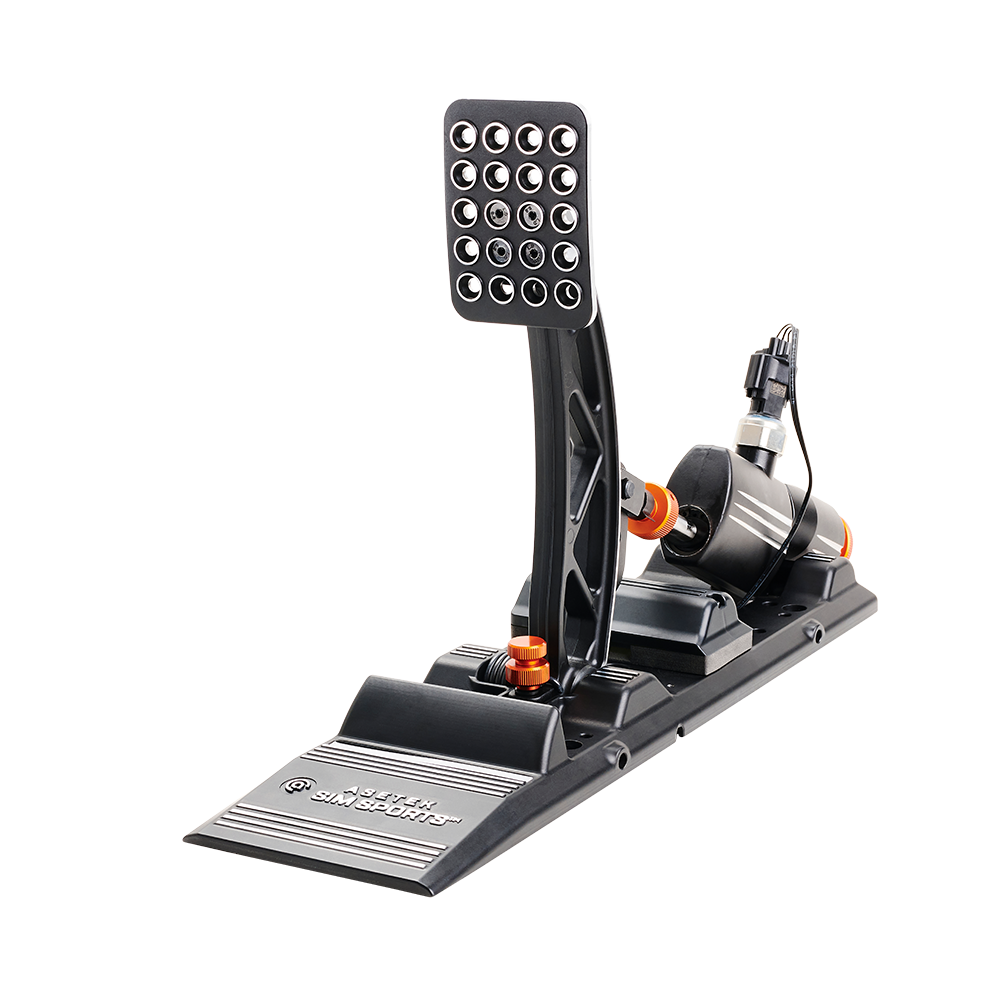

- Brake System
- Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point.
- Sustainable manufacturing with 100% on-site re-use of waste material
- Automotive-grade pressure sensor
- The inhouse designed brake cylinder features sleek CNC machined details, adding to the exquisite overall look.
- Three interchangeable elastomers for adjustment of hardness combined with an integrated physical stop and an expansion chamber to mimic perfect race car feel as well as not overloading the elastomer
- Manually adjustable initial touch hardness to mimic perfect brake pad to brake disc distance
- Pressure sensor measures 0-100 bar – tested to withstand a repetitive pressure of 100 bar (seal burst pressure 130 bar)
- 100 bar of pressure equals 180 kg of force on the face of the pedal plate
- Hydraulic Brake Cylinder made from forged aluminum
- Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!
-

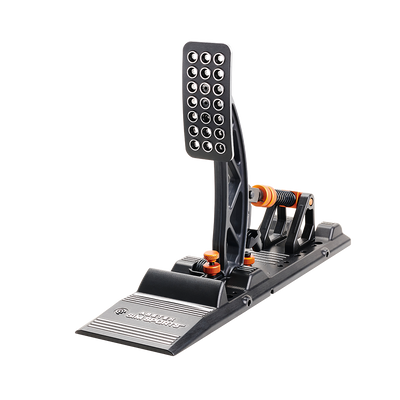

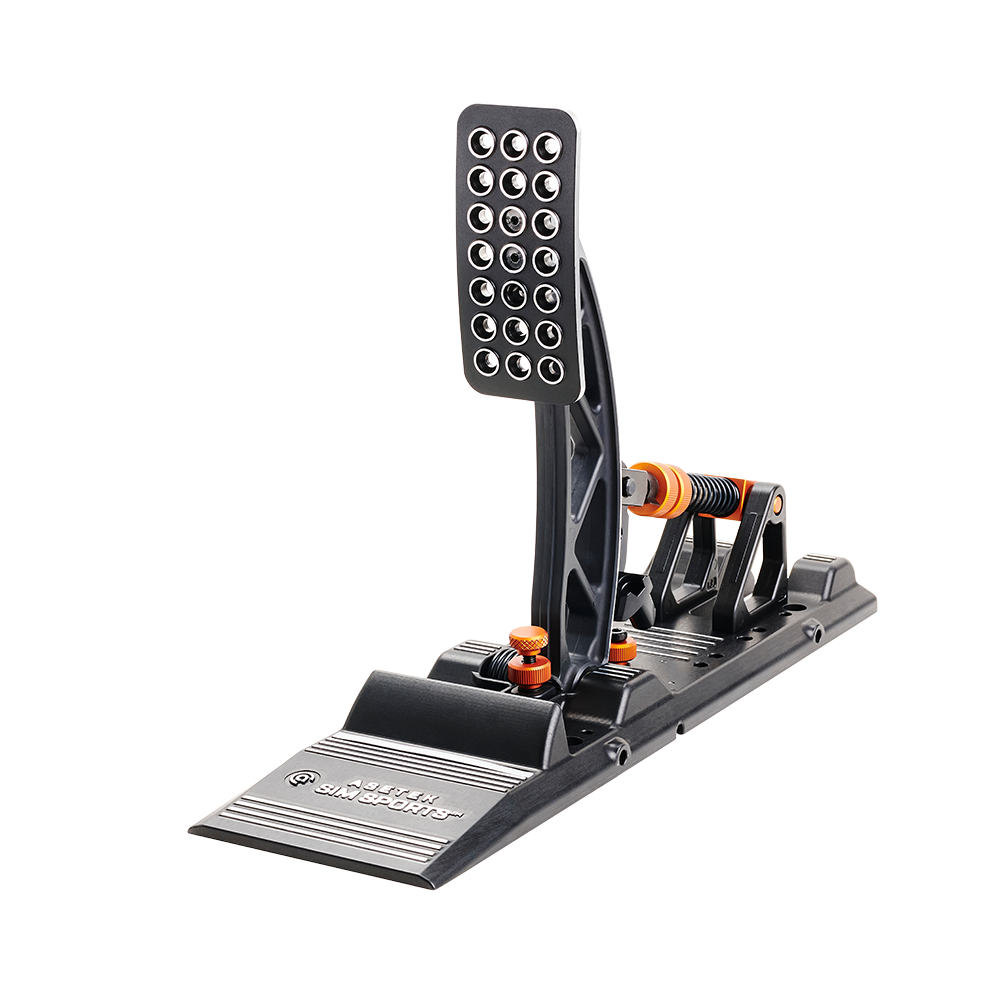

Throttle System
- Die-cast aluminum zero play pedal arm with integrated long durability ball bearings and bronze bushing at the clevis rotation point. Sustainable manufacturing with 100% on-site re-use of waste material
- 16-bit magnetic wireless hall TPS (throttle position sensor) with no mechanical wear and zero maintenance
- Custom throttle curves can be adjusted and 100% customized in the RaceHub Software to mimic real race car butterfly opening. For example a linear curve in dry conditions and a progressive in wet conditions
- Adjustable pedal hardness
- Adjustable pedal travel
- Adjustable pedal stop
- Interchangeable spring for bigger step in pedal hardness
- Pedal arm designed for 200 kg of force and a burst pressure of up to 700 kg!
- Dimensions
- Depth, width, and height: 457 mm x 212 mm x 256 mm
- Weight: 3 kg
COMPATIBILITY
- Compatible with all ASR-Brand SimRacing Chassis featuring the Steel Pedal Plate. Not compatible with Advanced SimRacing's Aluminum Pedal Tray & Adjustable Heel Rest.
- PC
- Platforms: Windows 10, 11
- Console support planned in the future
- Games
- Assetto Corsa
- Assetto Corsa Competizione
- DiRT Rally
- DiRT Rally 2.0
- F1 Series
- iRacing
- Project Cars 2
- rFactor 2
- And many more (all games that accept direct input devices)
DOWNLOADS
- Invicta Pedals Brake & Throttle – mm
- Invicta Pedals Brake & Throttle – inch
- Invicta Pedals Brake, Throttle & Clutch – mm
- Invicta Pedals Brake, Throttle & Clutch – inch
- RaceHub by Asetek SimSports : https://www.asetek.com/simsports/racehub/
BOOSTED MEDIA PREVIEW
“Overall we love these pedals. While they certainly aren’t a one-size-fits-all product, they achieve what they set out to do exceptionally well and at what we believe to be a very reasonable price point.
Input for both the clutch and throttle was smooth on the software side with no signal bounce or flickering whatsoever. The throttle, brake and clutch all employ tool-less adjustment for angle and feel, which makes on-the-fly tweaks easy compared with other pedal sets we have tested...”
– Will Ford, Boosted Media, preview of the Invicta Pedals
SHIPPING AND LEAD TIME
- FREE SHIPPING to all of the Continental U.S. and Canada (excluding Yukon, Northwest Territories & Nunavut).
- IMPORT DUTIES COVERED for U.S.-based customers.
- We ship from Montreal in Canada
- Our typical lead time before shipping out orders is 5 to 7 business days. This varies depending on the purchased items and our shipping queue.
- Once the items have shipped, transit time typically takes between 2 and 4 business days
- Please note that all large items, such as our SimRacing Chassis, Monitor Stands and Racing Seats, might not arrive on the same day as other parts of your order. Because of their weight and size, these boxes get sorted differently at our shipping partner's logistics hub.
WARRANTY
When you purchase Asetek SimSports products, you have a 24-month warranty for defects or lack of conformity in the goods from the time you received the goods. You must give notice of the defect or lack of conformity within a reasonable time after you have established the defect. A timely, justified complaint implies that you can either get the goods repaired, get a price reduction or get a refund depending on the specific situation. https://www.asetek.com/simsports/support/
